Magnetic hard discs can store data for little more than a decade. But nanotechnologists have now designed and built a disk that can store data for a million years or more.
Back in 1956, IBM introduced the world’s first commercial computer capable of storing data on a magnetic disk drive. The IBM 305 RAMAC used fifty 24-inch discs to store up to 5 MB, an impressive feat in those days. Today, however, it’s not difficult to find hard drives that can store 1 TB of data on a single 3.5-inch disk. But despite this huge increase in storage density and a similarly impressive improvement in power efficiency, one thing hasn’t changed. The lifetime over which data can be stored on magnetic discs is still about a decade.
That raises an interesting problem. How are we to preserve information about our civilisation on a timescale that outlasts it? In other words, what technology can reliably store information for 1 million years or more?
Today, we get an answer thanks to the work of Jeroen de Vries at the University of Twente in the Netherlands and a few pals. These guys have designed and built a disk capable of storing data over this timescale. And they’ve performed accelerated ageing tests which show it should be able to store data for 1 million years and possibly longer.
These guys start with some theory about aging. Clearly, it’s impractical to conduct an ageing experiment in real time, particularly when the periods involved are measured in millions of years. But there is a way to accelerate the process of aging.
This is based on the idea that data must be stored in an energy minimum that is separated from other minima by an energy barrier. So to corrupt data by converting a 0 to a 1, for example, requires enough energy to overcome this barrier.
The probability that the system will jump in this way is governed by an idea known as Arrhenius law. This relates the probability of jumping the barrier to factors such as its temperature, the Boltzmann constant and how often a jump can be attempted, which is related to the level of atomic vibrations.
Some straightforward calculations reveal that to last a million years, the required energy barrier is 63 KBT or 70 KBT to last a billion years. “These values are well within the range of today’s technology,” say de Vries and co.

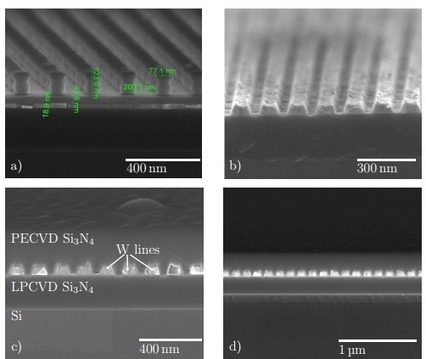

The disk is simple in conception. The data is stored in the pattern of lines etched into a thin metal disc and then covered with a protective layer.
The metal in question is tungsten, which they chose because of its high melting temperature (3,422 degrees C) and low thermal expansion coefficient. The protective layer is silicon nitride (Si3N4) chosen because of its high resistance to fracture and its low thermal expansion coefficient.
The results are impressive. According to Arrhenius law, a disk capable of surviving a million years would have to survive 1 hour at 445 Kelvin, a test that the new disks passed with ease. Indeed, they survived temperatures up to 848 Kelvin, albeit with significant amounts of information loss.
